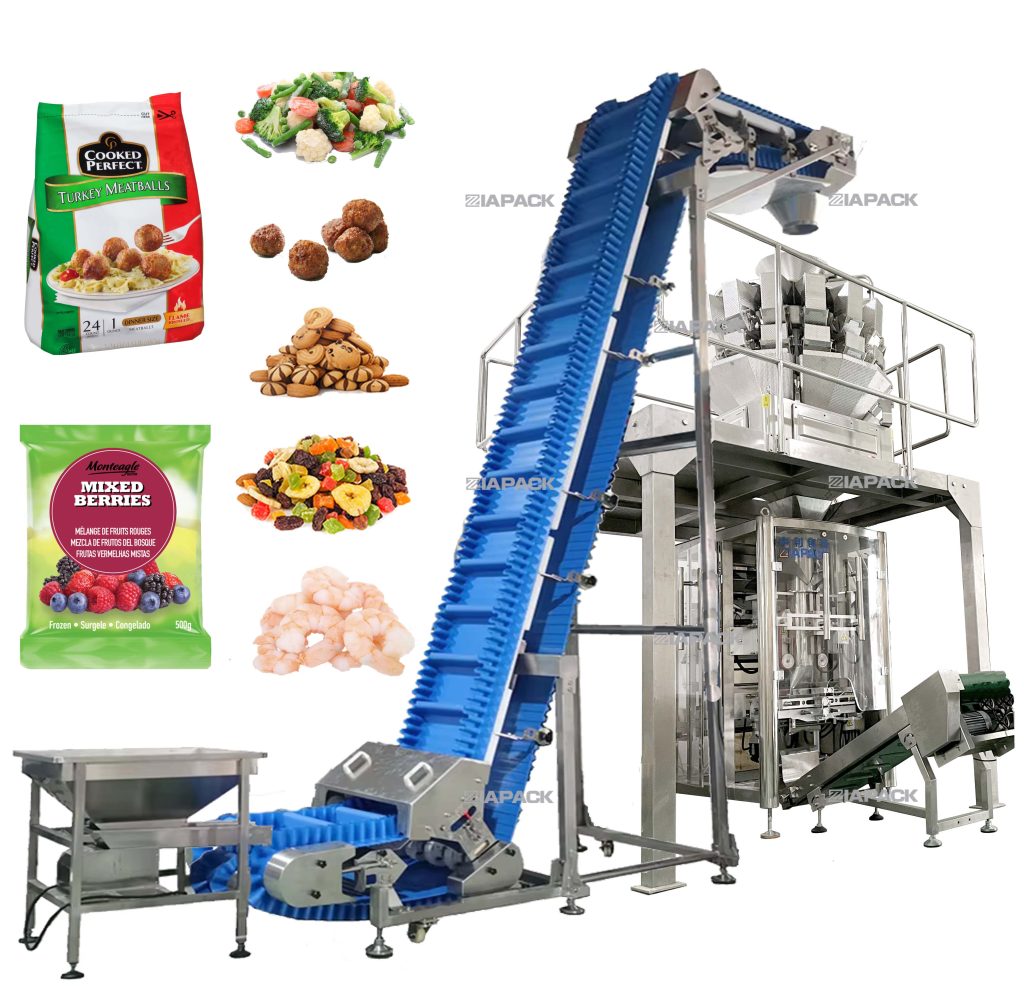

Avtomatik muzlatilgan oziq-ovqat mahsulotlarini to'ldirish uchun qadoqlash mashinasi

Kirish:

This unit machine is special design for packaging frozen food like shrimp ,meat ball,Chicken pieces dumpling and Toufu in to plastic bag .The whole machine have the function of automatic product feeding ,weighing ,film bag forming ,bag sealing ,Including date coding ,bag counting .The finished bag is output from conveyor machine which no need manual collect the bag and avoid the bag polluting .

Ilova:

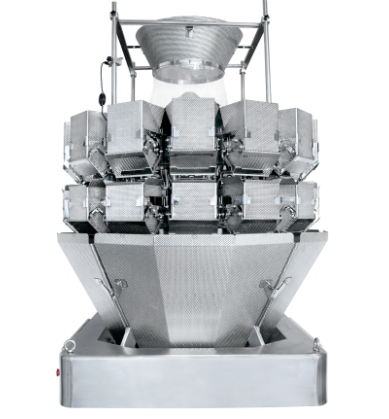

This weighting machine r is suitable for weighing different frozen food  like frozen fishes, fruit, frozen dumplings, rice dumplings, etc.,Adopt Dimple Plate and waterproof electric cabinet .Can Work in an environment with high humidity.

Xususiyatlari:

1. Yuqori aniqlik va yuqori standartlarga ega maxsus yuk kamerasi.
2. Dasturni tiklash funktsiyasi operatsion nosozliklarni kamaytirishi, ko'p segmentli vazn kalibrlashni qo'llab-quvvatlashi mumkin.
3. Hech qanday mahsulot avtomatik pauza funksiyasi tortish barqarorligi va aniqligini yaxshilay olmaydi.
4. Chiziqli amplituda mustaqil ravishda sozlanishi mumkin, bu esa oziqlantirishni yanada bir xil qilishi mumkin.
5. Global bozorlar uchun 15 ta til mavjud.
6. 100 ta dastur sig'imi turli xil tortish talablariga javob berishi mumkin, sensorli ekrandagi foydalanuvchilar uchun qulay yordam menyusi oson ishlashga yordam beradi.

Mechanical  Character:

1. Ip65 cabinet design, dimple plate for food contact parts.
2. Air pressure system built in cabinet prevents the electronic components from damage because of humidity.
3. Uniform design standards contribute to better interchangeability for spare parts.
4. The whole cast aluminum thickening machine case enhanced the strength of the machine, and shorten sample stable time.
5. Optional weighing type material detection, accurate control of feeding time, material thickness, to ensure the accuracy of the weighing.

Xususiyatlar:

ZL520 VFFS BAG FORMING FILLING PACKAGING MACHINE

Kirish:

Ushbu mashina avtomatik ravishda sumka yasash, to'ldirish, muhrlash, chop etish, kesish va hokazo funktsiyalarini amalga oshirishi mumkin. Ushbu mashina avtomatik ravishda to'ldirish va muhrlash uchun sumka hosil qilishi mumkin.

Ushbu qadoqlash mashinasi plyonka uchun import servo motorini qabul qiladi va odam-mashina interfeysi ilg'or sensorli ekrandan foydalanadi. Operatsiya oddiyroq va qulayroq. Barcha komponentlar xalqaro mashhur brendni qabul qiladi, PLC - SIEMENS, servo motor - PANASONIC, sensorli ekran - SIEMENS, silindr va havo klapanlari - SMC. material bilan aloqa qiladigan qismlar, boshqaruv shkafi, asosiy ramka zanglamaydigan po'latdan yasalgan304

Texnik parametrlar:

Qadoqlash tezligi (MAX): 20-50 sumka / min

Yukxalta turi: yostiqli sumka .gusseted sumka

Bag size: bag width 60-250mm bag length 80-350mm

Siqilgan havo iste'moli: 0,6 MPa 350 L / min

Elektr talabi: 380V/5,5 kVt50 Hz
